Motorized Filter Wheels

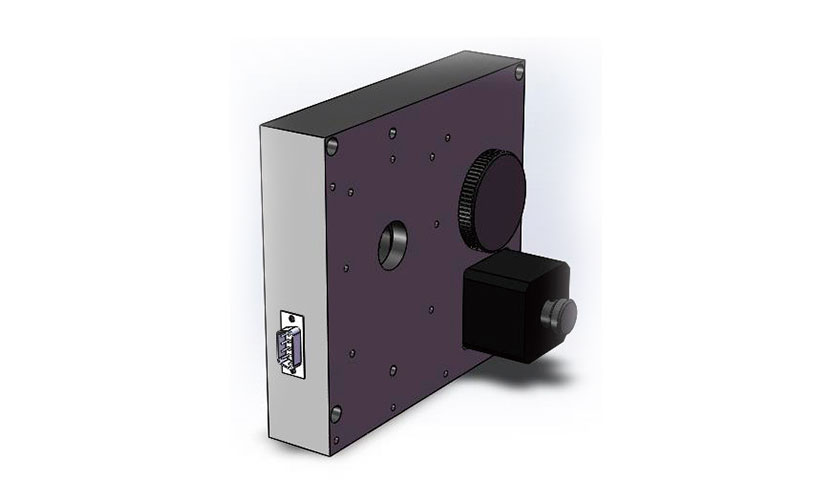

The SD25 six position filter wheel holds up to six 25mm diameter filters(aperture 22mm). For the automatic filter wheel, stepping motor drives the compact filter wheel via the monochromator/spectrograph controller. The SD25 filter wheel is fully compatible with the Omni-λ series monochromators/spectrographs.



Inquiry
Download
Details

Features

■ Six Position Stepping Motor Controlled Filter Wheel

■ Accommodates 25mm diameter filters (option)

■ Integrates with Omni-λ Monochromator/Spectrograph and Software

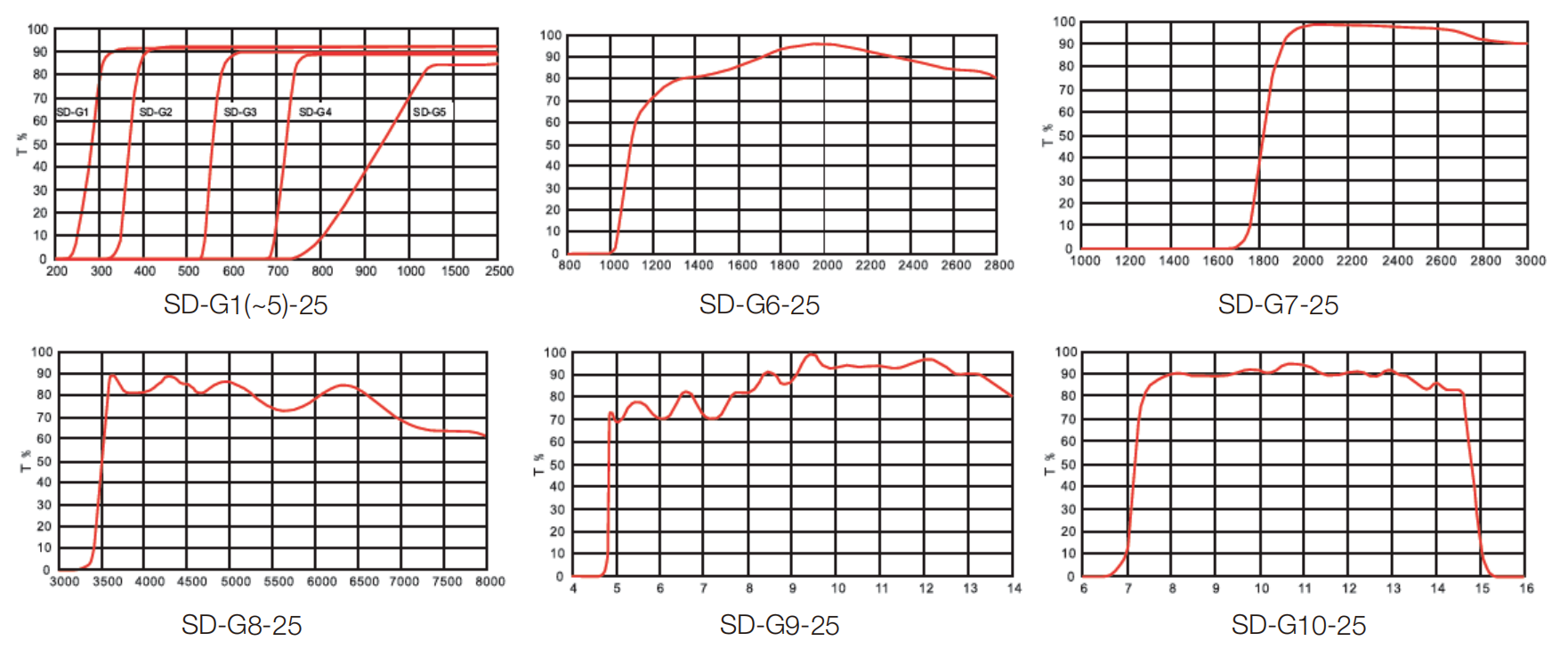

Filter Spectral Transmittance Curves

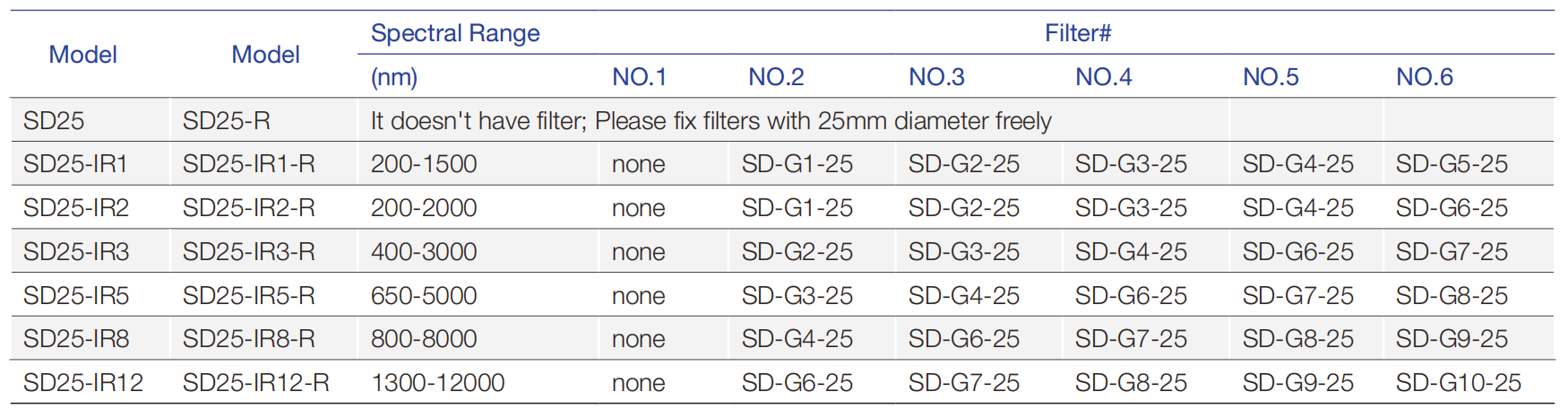

Selections

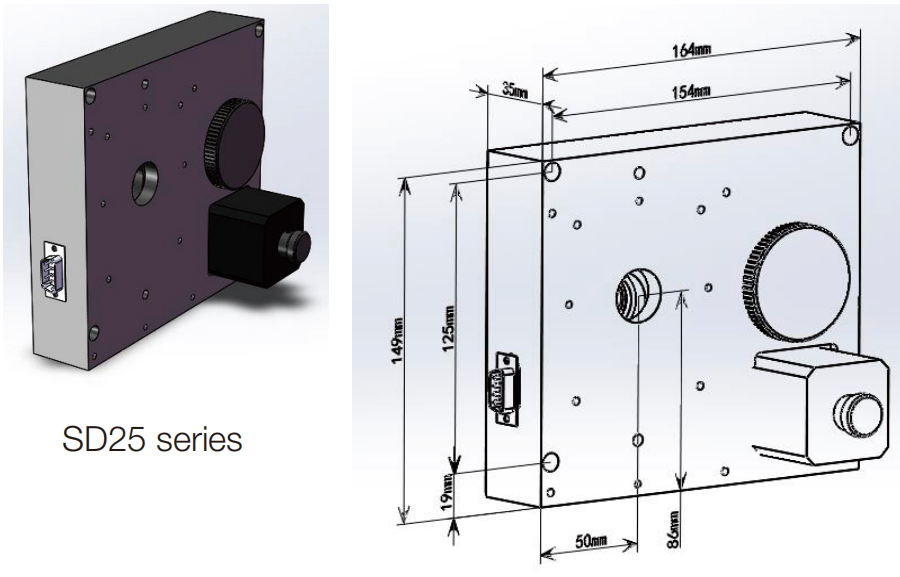

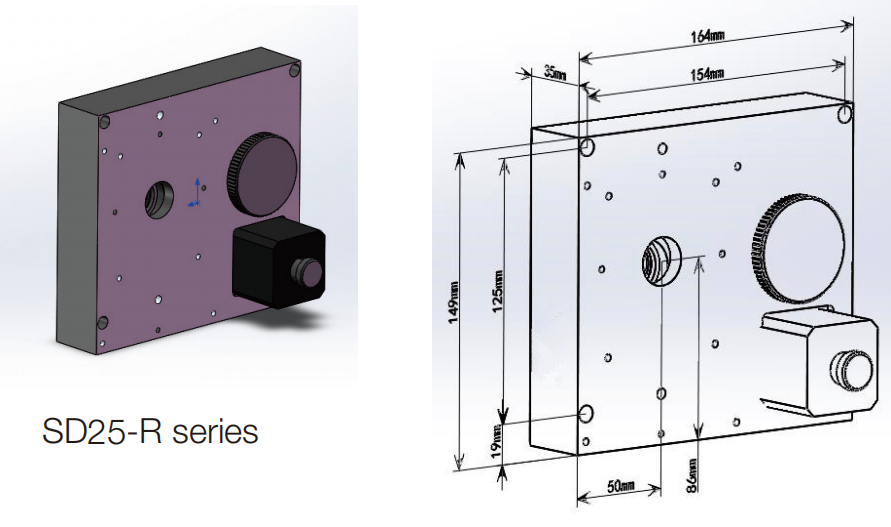

SD25-R series is for Omni-λ200i and sample chamber SAC-FLUO only ;SD25 series is for Omni-λ300i/500i/750i
