Home > Products > Spectrograph & Monochromator > Integrated System & Application > Eye protection and integral spectral transmittance measurement system

Eye protection and integral spectral transmittance measurement system

Inquiry
Download
Details

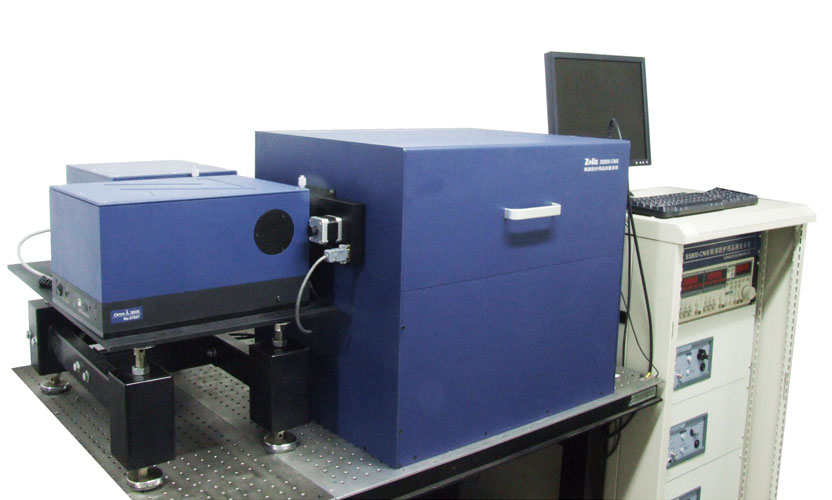

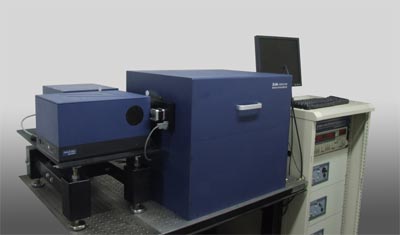

Eye protection and integral spectral transmittance measurement system

The system measures protective glasses, helmets, protective masks and integral spectral transmittance
Spectral Range 200-2200nm
The spectral transmittance ratio range: τ(λ)=0.1 ~ 0.9
Tansmittance measurement system uncertainty
U<0.015（Vis、UVA、UVB）
U<0.02（UVC、NIR）
Composite light source: Deuterium lamp, tungsten lamp
Transmittance Repeatability: R<0.01
Transmittance Accuracy: ±2%
Sample holder and clamper ensure center area at the light axis, Travel X:150mm, Travel Y 150mm,Travelθz 90° and Travel θy is 45°
Spectroscopy software and filter wheel software, Output data collection and analysis and calculation software, measurement parameters are automatically saved and can be printed directly
